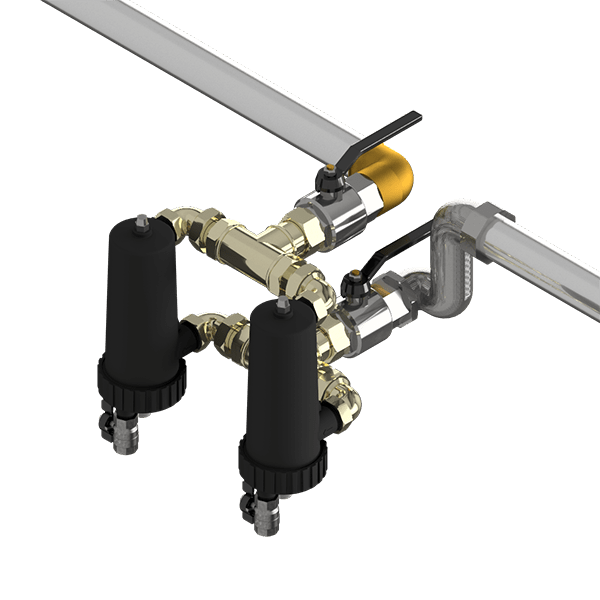

T-MAG XL DUPLEX: MAGNETIC FILTER WITH SEMIAUTOMATIC CLEANING IN BACKWASHING FOR HEATING SYSTEMS UP TO 800 LT OF WATER (700 – 800 SQ. M.)

T-MAG XL DUPLEX is a filtration system equipped with no.2 neodymium magnets with 10.500 GAUSS, which can block a large quantity of iron oxides and magnetite circulating in the system. Additionally, the system contains no. 2 filtering baskets of 450 microns and 250 c.c. for block a large quantity of non-magnetic debris.
Thanks to its easy and quick removable magnet from the bottom and the drain valve, its cleaning operation is extremely easy, semi-automatic and in backwashing.
T-MAG XL DUPLEX maximum efficacy as iron oxides separation system is achieved by adding to the system the inhibitor PROTECT 1, which guarantees the best protection against corrosions. If you want to clean the system with the “ZERO DRAIN” technology (without rinsing or draining the system), add the dispersing agent CLEAN 1 to the system.

FEATURES

• No. 2 neodymium magnets of 10.500 GAUSS
• No. 2 filtering baskets of 250 c.c. with 450 micron mesh
• No. 2 filter bodies with connection 1” ½
• No. 2 drain valves
• Maximum temperature: 80° C
• Maximum pressure: 3 bar
• Maximum flow rate: 100 l/min.
• Volume: 1.5 l
• Filter material: PP reinforced

DIMENSIONS

System up to 800 liters of water (700 – 800 sq. m.)

PACKAGING

• No. 2 T-MAG XL Magnetic Filters
• No. 1 KIT FOR INSTALLATION
