T-MAG COMPACT
MAGNETIC FILTER WITH SEMI-AUTOMATIC CLEANING IN BACKWASHING
T-MAG COMPACT filter is a patented product and has been equipped by a Neodymium powered magnet of 8.500 Gauss, which captures and retains any metal oxides circulating in the heating system. Moreover, its filtering basket with a 450-micron mesh can also collect big quantities of non-magnetic debris.
T-MAG COMPACT filter fits either vertical or horizontal onto pipework and, thanks to its magnet easily removable, can be cleaned in backwashing, without opening it.

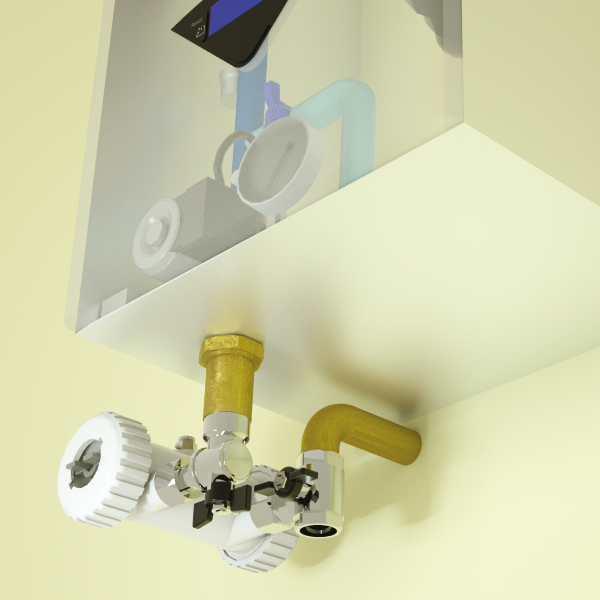

T-MAG COMPACT filter has been designed with high-performing features: the smallest size, the smart inlet-outlet attachments position and the great versatility allow T-MAG COMPACT filter installation in a 12 cm height only, also in a well-mounted boiler.
T-MAG COMPACT filter maximum efficacy as main agent in iron oxides separation is performed
by adding to the system the inhibitor PROTECT 1, which guarantees the system best protection against corrosion.
If you want to clean the system without powerflushing or draining it (“ZERO DRAIN”), add to the system the product CLEAN 1, a non-corrosive dispersing agent for metal oxides.
FEATURES
• Powered Neodymium magnet of 8.500 GAUSS
• Filtering basket of 107 cc with 450 micron mesh
• Filter body with ¾” connections
• Maximum pressure: 6 bar
• Maximum temperature: 80°C
• Maximum flow rate: 30 l/minute
• Volume: 0,176 l
• Filter material: glass reinforced nylon
• Avoid energy waste
DIMENSIONING
systems from 80 up to 100 l of water (80-100 m²)
PACKAGING
T-MAG COMPACT (white or black)
T-BOX MAG COMPACT (white or black)
T-BOX ZERO COMPACT (white or black)
